Products Detail

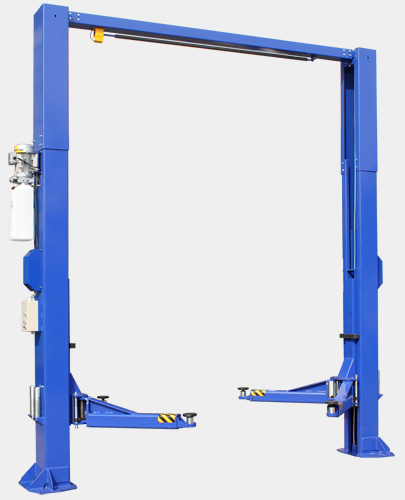

Product Name : 165949D
|
Description
- 5,000kg lifting capacity
- Original "Duro" power unit
- Direct Drive high pressure hydraulic cylinder
- Steel rope stabilizing
- Electro-magnetic lock release system
- Extra long carriage ( 1200mm ) puts less stress on slider blocks
- Padded overhead safety shut-off bar
- Drop-in contact pads with stackable adapters are standard (84mm ; 384mm )
- Powder-coated paint finish
- Original "Duro" power unit
- Direct Drive high pressure hydraulic cylinder
- Steel rope stabilizing
- Electro-magnetic lock release system
- Extra long carriage ( 1200mm ) puts less stress on slider blocks
- Padded overhead safety shut-off bar
- Drop-in contact pads with stackable adapters are standard (84mm ; 384mm )
- Powder-coated paint finish
Special Feature

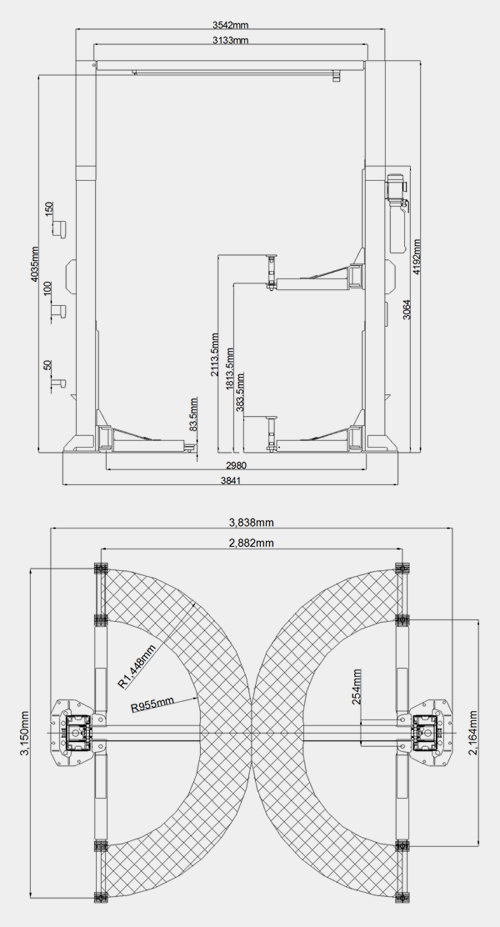

Technical Data
| Model | 165949D |
| Height overall | 4192 mm ( 165" ) |
| Width overall | 3838 mm ( 151-1/8" ) |
| Lifting height | 84 ~ 2114 mm ( 3-5/16" ~ 83-3/16" ) |
| Lifting capacity |
5000 kg ( 11000 lbs ) |
| Arm extensions | 955 ~ 1448 mm ( 37-5/8" ~ 57" ) |
| Power | 400V/50Hz( 220V/50Hz ) |
| Net weight | 996 kg ( 2191 lbs ) |
| Gross weight | 1016 kg ( 2235 lbs ) |
| Quantity in 20' container | 6 units |
| Quantity in 40' container | 18 units |
| Packing size | 3090 x 1165 x 645 mm ( 121-11/16" x 45-7/8" x 25-3/8" ) |
Accessory
Download attachments :
