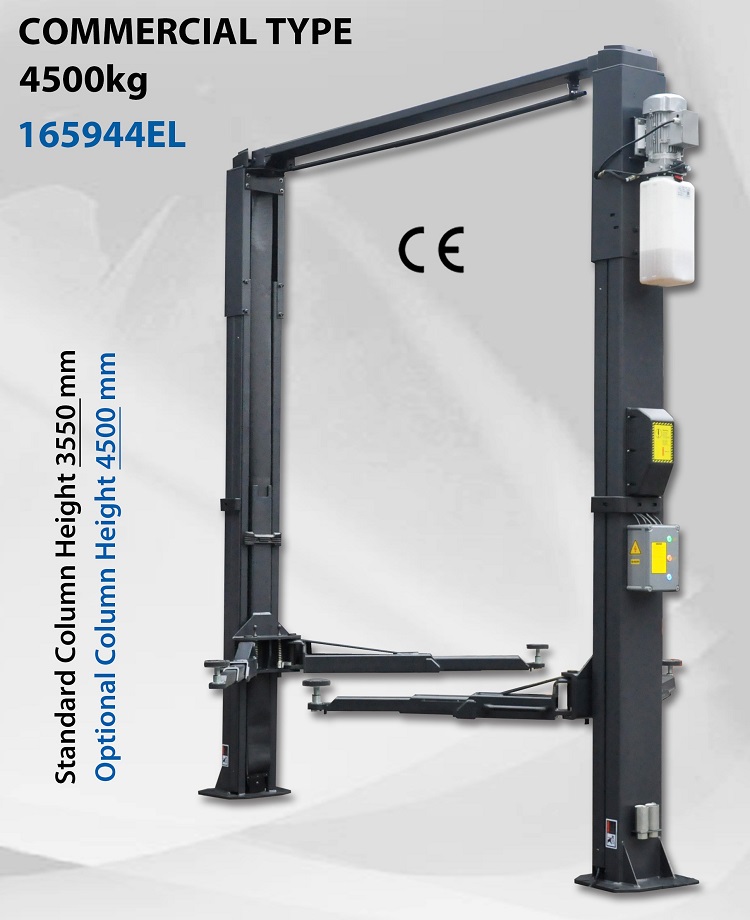

Product Name : 165944EL
Description
- 4,500kg lifting capacity
- Original "Duro" power unit
- Chain Drive high pressure hydraulic cylinder
- Steel rope stabilizing
- Single-point manual lock release system
- S-shaped column
- CE certificated
- Drop-in contact pads with stackable adapters are standard
- Powder-coated paint finish
- Original "Duro" power unit
- Chain Drive high pressure hydraulic cylinder
- Steel rope stabilizing
- Single-point manual lock release system
- S-shaped column
- CE certificated
- Drop-in contact pads with stackable adapters are standard
- Powder-coated paint finish
Special Feature
|
Standard Column Height 3550 mm, |
| Optional Column Height 4500mm. |

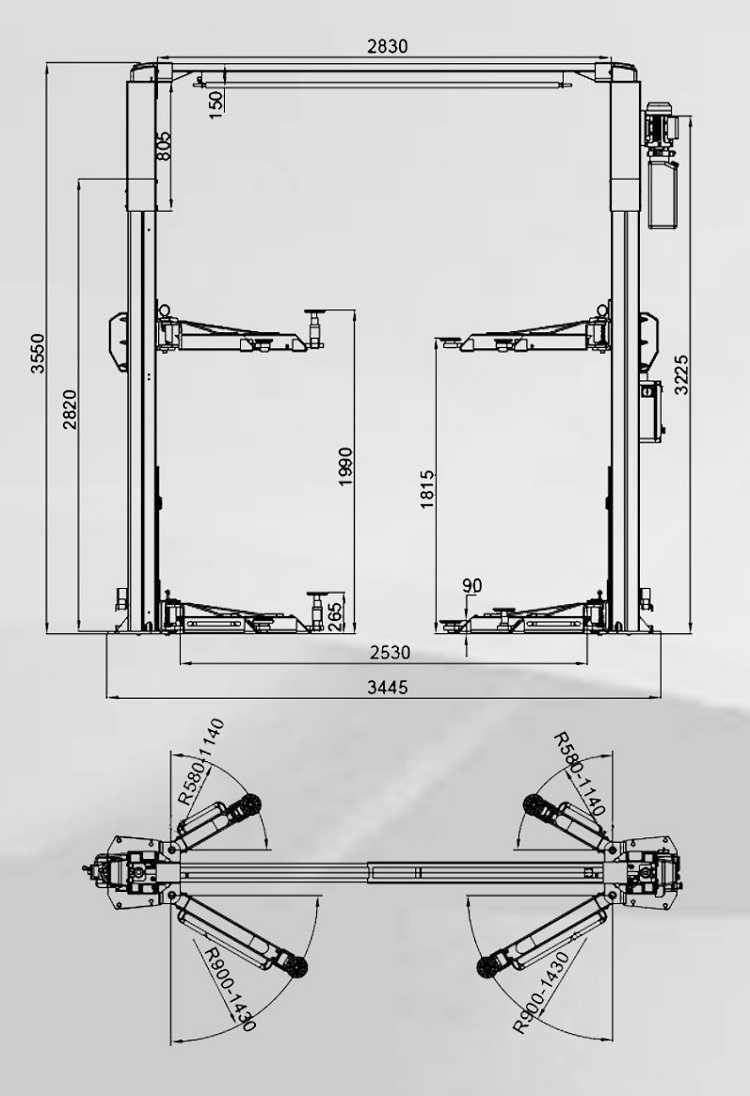

Technical Data
| Model | 165944EL |
| Height overall | 3550 mm ( 139.8" ) |
| Width overall | 3445 mm ( 135.6" ) |
| Lifting height | 90 ~ 1990 mm ( 3-9/16" ~ 78-3/8" ) |
| Lifting capacity |
4500 kg ( 8800 lbs ) |
| Short arm extensions | 580 ~ 1140mm ( 22.8" ~ 44.9" ) |
| Long arm extensions | 900 ~ 1430 mm ( 35.4" ~ 56.3" ) |
| Drive through width | 2530 mm (99.6") |
| Net weight | 635 kg ( 1397 lbs ) |
| Packing size | 2880 x 460 x 750 mm ( 113.4" x 18.4" x 28.3" ) |
