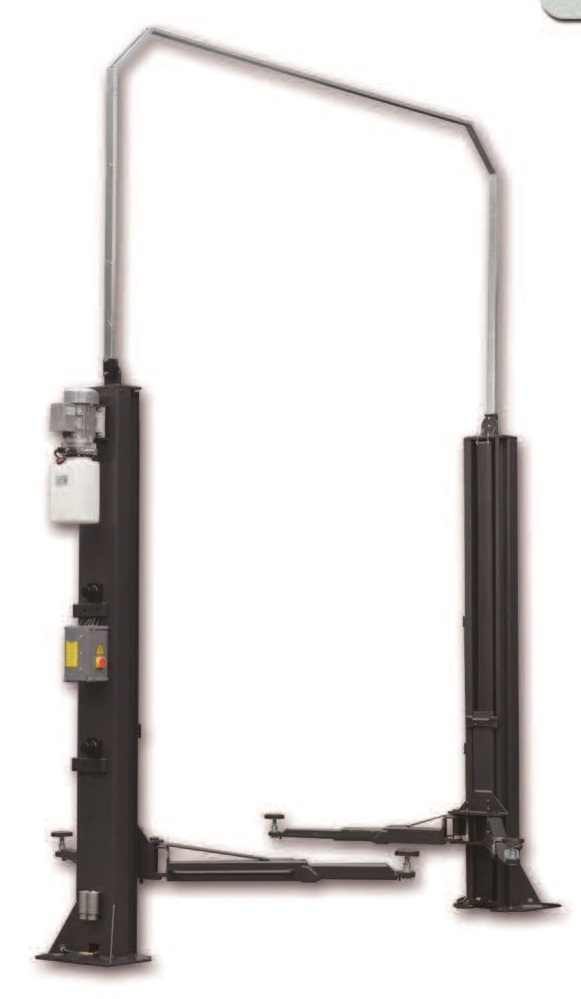

Product Name : 165939SW
Description
  - 3,500kg lifting capacity
   - Original "Duro" power unit
   - Double direct  drive high pressure hydraulic cylinder
   - Not steel cable but cylinder stabilizing
   - Electro-magnetic lock-release system
   - S-shaped column
   - Drop-in contact pads with stackable adapters are standard
   - Powder-coated paint finish
Special Feature
Technical Data
Model 165939SW
Height overall 3750 mm ( 147-6/8" )
Width overall 3520 mm ( 138-9/16" )
Lifting height 90 ~ 1990 mm ( 3-9/16" ~ 78-3/8" )
Lifting capacity

3500 kg ( 7700 lbs )

Short arm extensions 580 ~ 1140mm ( 22.8" ~ 44.9" )
Long arm extensions 900 ~ 1430 mm ( 35.4" ~ 56.3" )
Drive through width 2560 mm (100.8")
Net weight 643 kg ( 1415 lbs )
Packing size 2850 x 520 x 750 mm ( 112.2" x 20.5" x 28.3" )



Accessory
Download attachments :
