Product Name : 161108D
Description

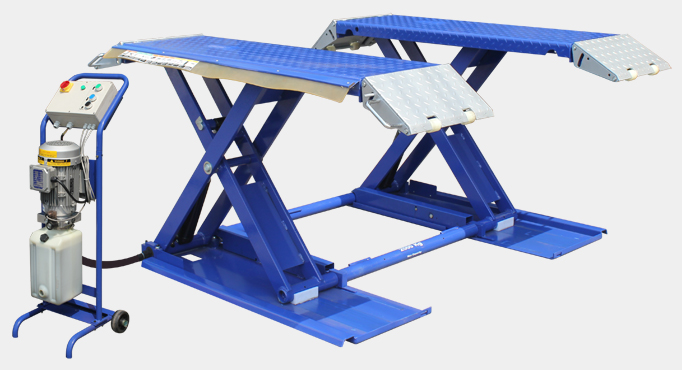

- The hydraulic mobile scissor lift is a manually mobile,frame contact lift incorporating the latest safety technologies

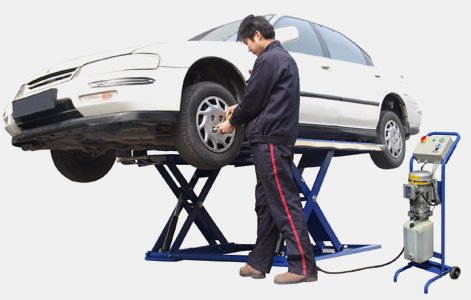

- It's fully capable for lifting car cars,light vans and safely holding them in an elevated position

- It consists of a fixed structural scissor lift, the mobile unit(wheels and trolley), the hydraulic power control system and

  safety devices
- With electro-magnetic lock-release safety system
- Easy for maneuvering

Special Feature

 Mobility kit turns the lift into a fully portable ramp

Technical Data
Model 161108D
Specifications
Capacity 2,500 kg
Lifting Height, Max 995 mm ( 39.17” )
Height, Min 110 mm ( 4.33” )
Width Overall 1,950 mm ( 76.77” )
Platform Length, Max 1,966 mm ( 77.4” )
Platform Width 460 mm ( 18.1” )
Width between platforms 845 mm ( 33.27” )
Power Unit 400V, 50Hz, 16A, 2.2KW
Ambient Air Temperature +5℃ ~ +40℃   41F~104F
Ambient Air Humidity 30% ~ 95%
Altitude below 1,000 m ( 3280 feet ) above sea level
Storage Temperature -25℃~ +55℃   -13F~131F
