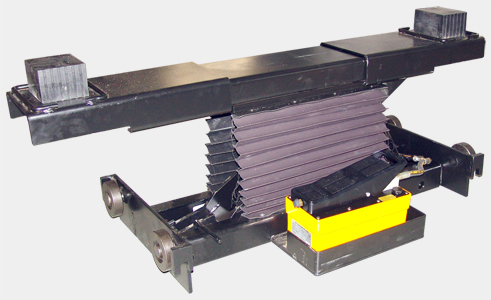

Product Name : 306027

Description
- Low profile eliminating the need to swing away when lift is at floor level
- 3000kg capacity suitable for any passenger cars
- Equipped with a hand-operated pump
- Combined use of two rolling jacks

Special Feature

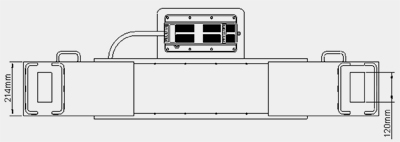

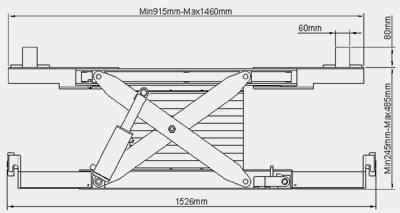

Technical Data
Model 306027
Overall length 1526mm ( 60-1/8" )
Overall width 214mm ( 8-7/16" )
Overall height 245mm ( 9-5/8" )
Lifting height 245 ~ 485mm ( 9-5/8" ~ 19-1/8" )
Lifting capacity 3000kg ( 6600lbs )
Net weight

135kg ( 297lbs )

Gross weight 150kg ( 330lbs )
Quantity in 20' container 100units
Quantity in 40' container 125units
Packing size 1060 x 590 x 360mm ( 41-3/4" x 23-3/16" x 14-3/16" )


Accessory
