Product Name : 161106
Description
- Low drive-over height for approach of low vehicles
- Easy frame lifting on padded runways
- Great for wheel and brake work, tire and wheel changing as well as new car preparation

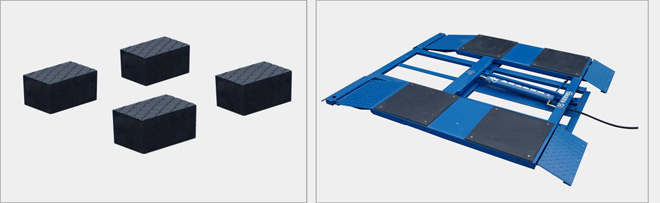

- Two sets of rubber riser blocks
- Automatic safety locks
- Manual release lock system
- Lifting from 5" to 26" height
Special Feature
Technical Data
Model 161106
Lifting capacity 2.7 ton ( 6,000 lbs )
Lifting speed 35 sec
Motor rating 110/220V, 50/60Hz, 1Ph
Collapsed height 110 mm ( 4-3/8" )
Lifting height 660 mm ( 26" ) / 762 mm ( 30" )
Length overall

2210 mm ( 87" )

Width overall 1905 mm ( 75" )
Runway width 495 mm ( 19-1/2" )
Width between runways 889 mm ( 35" )
Accessory
Download attachments :
