Product Name : 243292
Description
Made of heavy-duty diamond plate.
Front wheelvise included.
Professional air hydraulic pump with protection Case.
Single hydraulic lifting cylinder.
Cut-out for easy working on rear wheel.
Good for snowmobiles and garden tractors as well.
Special Feature

Front Wheel Vise Included
  4 Locking Positions   Base Assembly Fitted With Balance Bar

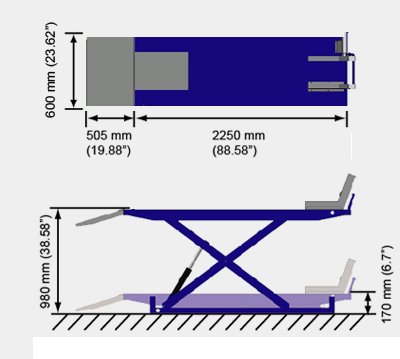

Technical Data
Model 243292
Specifications
Capacity 400Kg  ( 880lbs. )
Operating Pressure 0.8-1.0Mpa  ( 116-145psi )
Min. Height 170mm ( 6.69" )
Max. Height 980mm ( 38.58" )
Length Overall 2755mm ( 108.46" )
Width Overall 600mm ( 23.62" )
Parking Size 2170mm x 650mm x 380mm ( 85.43" x 25.59" x 14.96" )
Net Weight 255Kg ( 561lbs. )
Gross Weight 295Kg ( 649lbs. )
Quantity in 20' Container 40untis
Quantity in 40' Container 67untis

Accessory
