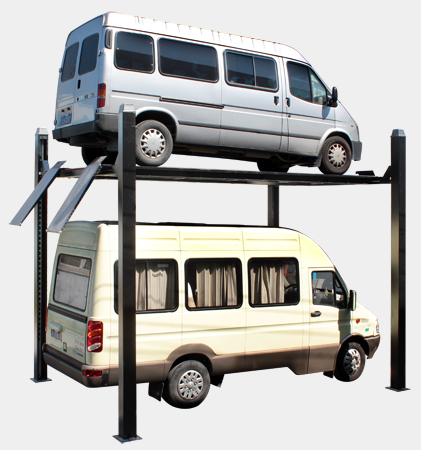

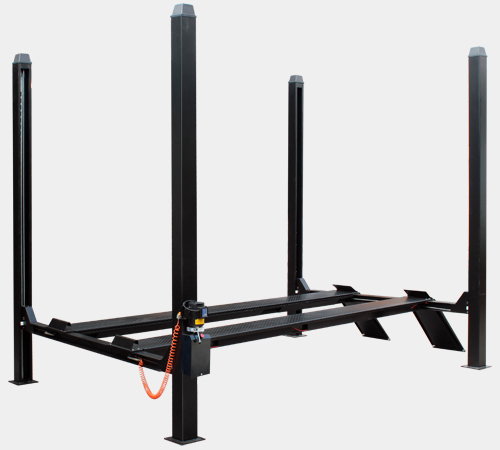

Product Name : 163027
Description
- Adjustable platform distance
- Ultra-low profile ramps
- Auto engaging & manual releasing safety device
- Cable & underdeck cylinder driving system
- Easy installation
- Ladder lock safety system with second locking bar in the event of cable failure
- 35 lock positions
Special Feature

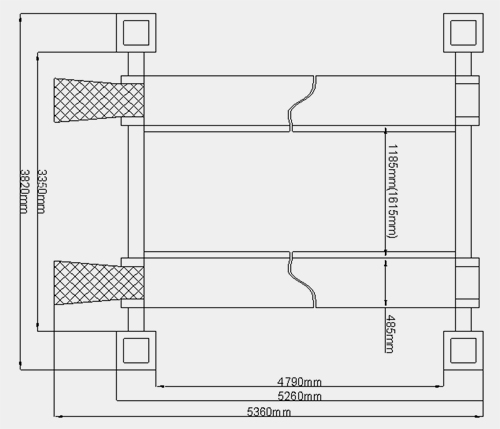

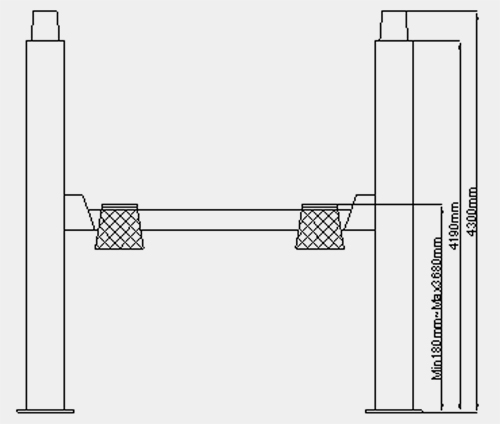

Technical Data
Model 163027
Height overall 4300 mm ( 169-5/16" )
Width overall 3820 mm ( 150-3/8" )
Length overall 5360 mm ( 211" )
Lifting height 200 ~ 3700 mm ( 7-7/8" ~ 145-11/16" )
Lifting capacity

3200 kg ( 7040lbs )

Power 220V / 50Hz / 1PH
Net weight  1577 kg ( 3469lbs )
Gross weight 1609 kg ( 3540lbs )
Quantity in 20' container 6 units
Quantity in 40' container 12 units
Packing size 5235 x 630 x 1310 mm ( 206-1/8" x 24-13/16" x 51-9/16" )



Accessory
Download attachments :
