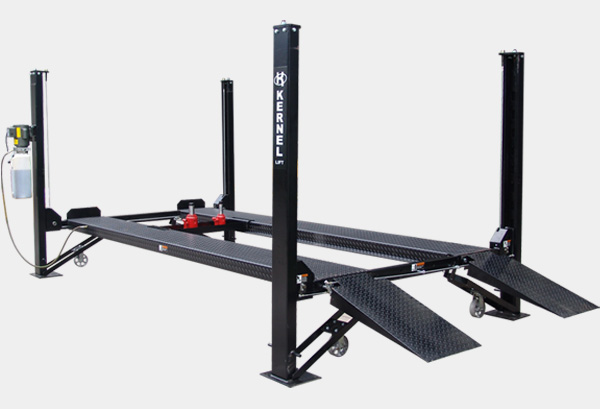

Product Name : 163012
Description
- Adjustable Platform Distance
- Ultra-Low Profile Ramps
- Auto Locking D Manual Releasing Safety Device
- Cable & Underdeck Cylinder Driving System
- Easy Installation and Moving
Special Feature
Technical Data
Model 163012
Lifting capacity 4 ton ( 8,800 lbs )
Lifting speed 50 sec
Motor rating 230V ( 400V ), 50Hz, 1Ph
Lifting height (Min.)  115 mm ( 4.5" )
Lifting height (Max.) 1850 mm ( 73" )
Length overall ( Inc.ramps )

5530 mm ( 218" )

Width overall 2260 mm ( 89" )
Runway width 640 mm ( 25-3/16" )
Gross Weight 750 kg ( 1650 lbs )
Accessory
Download attachments :
