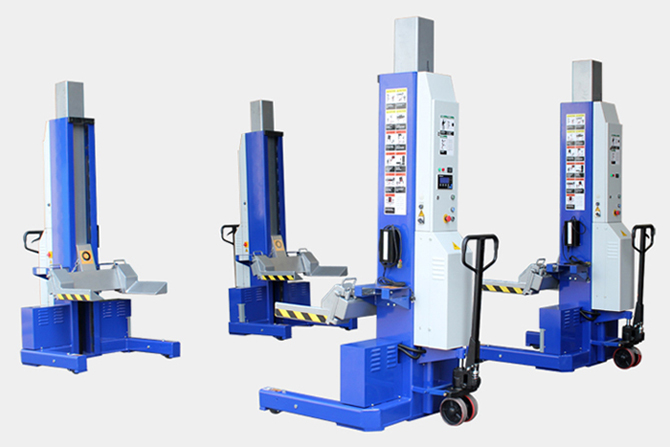

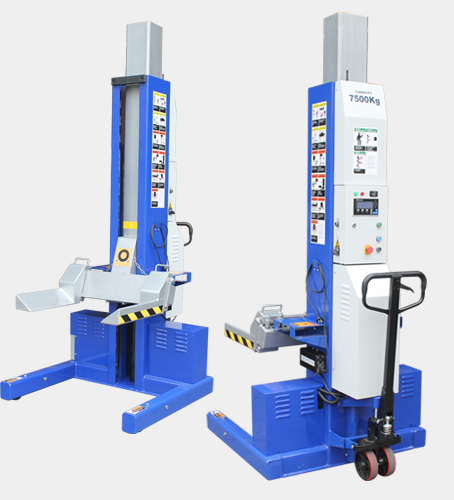

Product Name : 167217W

Description

- User-friendly operation through selector buttons on master controller for individual, paired & synchronized

operation

- SIMENS PLC computer and rotating encoder provide continuous synchronization of all columns
- Adjustable lifting forks accommodate the widest range of wheels without wheel reducer sleeves
- Front wheel on the pallet jack for easy movement of the columns
- Heavy duty hydraulic system and bearings on carriages provide efficient, fast & easy lifting
- Communication & electrical cables with double ends in horseshoe wiring make vehicle driven in or out easily

without disconnecting cables

- LCD screen with keyboard provides mutiple settings and vision of lifting height
- Independent mechanical locking system & emergency switch on every column provide highest safety insurance

Special Feature

LCD screen with keyboard
offers easy to read visuals
of multiple settings and
lifting height

Heavy-duty pallet jack
allows easy movement
of the columns

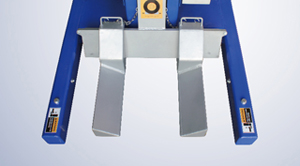

Adjustable pick-up forks match up with the tyres.

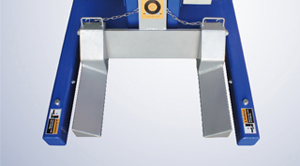

Adjustable lift forks width Standard 280mm length pick-up fork's width can be adjusted to accommodate small wheels

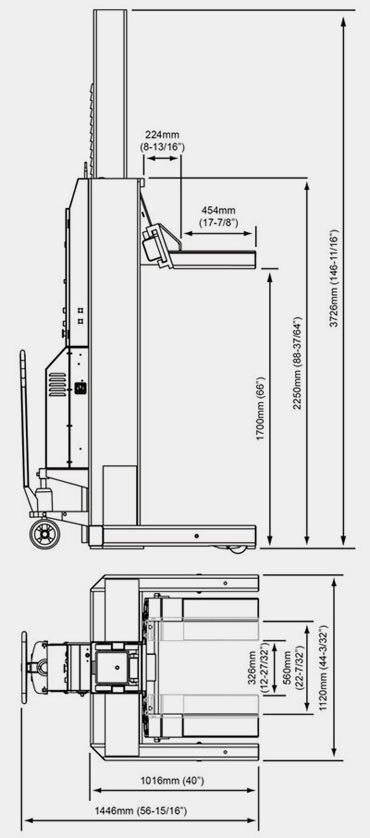

Technical Data

Model	167217W
Specifications
Lifting height	5~1700 mm ( 1/4"~66" )
Lifting Capacity	7500 kg ( 16500 lbs ) / each column
Lifting/Lowering Time at Rated Load	100 / 60 sec
Max. Floor Surface Pressure ( Per Front Wheel )	3200 kg ( 7000Ibs )
Height Overall	2250 mm ( 88-37/64" )
Width Overall	1120 mm ( 44-3/32" )
Max. Distance Between Lifting Columns	9 m ( 29-1/2’ )
Operation Voltage	24 V
Power	12 V DC
Noise Level	Max 73db ( A )
Net Weight	700 kg ( 1540Ibs )
Quantity in 20” Container	10 units
Quantity in 40” Container	20 units
Packing Size	1446 x 1120 x 2250 mm ( 56-15/16" x 44-3/32" x 88-37/64" )
